iOS_Q&A

Q1.通知是同步还是异步?

  • A1:通知是同步的。测试如下:
 [[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(print:) name:@"GCDNotification" object:nil];
    [[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(print1:) name:@"GCDNotification" object:nil];
    [[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(print2:) name:@"GCDNotification" object:nil];
    [[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(print3:) name:@"GCDNotification" object:nil];

    [[NSNotificationCenter defaultCenter] postNotificationName:@"GCDNotification" object:nil];
        NSLog(@"发出通知----%@",[NSThread currentThread]);

    - (void)print:(NSNotification *)notif{
        NSLog(@"0收到通知----%@",[NSThread currentThread]);

        sleep(10);
}
// log
2017-12-24 15:07:58.552422+0800 KVOTest[7306:368524] 0收到通知----<NSThread: 0x604000066840>{number = 1, name = main}
2017-12-24 15:08:08.553940+0800 KVOTest[7306:368524] 1收到通知----<NSThread: 0x604000066840>{number = 1, name = main}
2017-12-24 15:08:18.555010+0800 KVOTest[7306:368524] 2收到通知----<NSThread: 0x604000066840>{number = 1, name = main}
2017-12-24 15:08:28.557206+0800 KVOTest[7306:368524] 3收到通知----<NSThread: 0x604000066840>{number = 1, name = main}
2017-12-24 15:08:38.559301+0800 KVOTest[7306:368524] 发出通知----<NSThread: 0x604000066840>{number = 1, name = main}
  • 模拟实现异步接收的效果如下:
1
2
3
4
5
6
7
8
9
10
11
12
 -(void)print:(NSNotification *)notif{
    dispatch_async(dispatch_get_global_queue(0, 0), ^{
        NSLog(@"0收到通知----%@",[NSThread currentThread]);
        sleep(10);
    });
}
// log
2017-12-24 15:11:09.680454+0800 KVOTest[7325:373178] 2收到通知----<NSThread: 0x60000026c880>{number = 5, name = (null)}
2017-12-24 15:11:09.680454+0800 KVOTest[7325:373056] 3收到通知----<NSThread: 0x60400006e800>{number = 1, name = main}
2017-12-24 15:11:09.680488+0800 KVOTest[7325:373176] 0收到通知----<NSThread: 0x60000026c040>{number = 3, name = (null)}
2017-12-24 15:11:09.680491+0800 KVOTest[7325:373175] 1收到通知----<NSThread: 0x60400027d440>{number = 4, name = (null)}
2017-12-24 15:11:19.682627+0800 KVOTest[7325:373056] 发出通知----<NSThread: 0x60400006e800>{number = 1, name = main}

Q2.UIView和CALayer的父类及关系?

  • UIView的父类是UIResponse,可以响应事件和手势
  • CALyer的父类是NSObject,不可以响应事件和手势,更偏重内容绘制
  • 每个UIView都有自己的CALayer,UIView的frame只是返回CALayer的frame
  • 在 View显示的时候,UIView 做为 Layer 的 CALayerDelegate

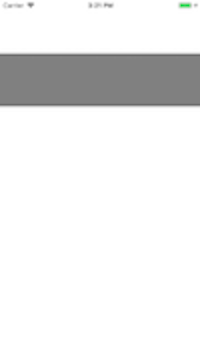

Q3.手动设置UIView的bounds会怎样?

  • [UIview setBounds:]改变当前view相对于子view的坐标原点。
 UIView *view1 = [[UIView alloc] initWithFrame:CGRectMake(0,0, 375, 100)];
    [view1 setBackgroundColor:[UIColor grayColor]];
    [self.view addSubview:view1];

    // 改变后,view1的原点在(0,-100)位置
    self.view.bounds = CGRectMake(0, -100, CGRectGetWidth(self.view.frame), CGRectGetHeight(self.view.frame));

Q4.在xib中创建一个全view大小的tableview,会不会被导航栏遮挡?为什么?

  • 正常情况下,导航栏的透明度可影响视图是否被遮挡
 // 设置不透明,self.view在导航栏下面展示,不遮挡
 // 否则,self.view为全屏展示,会被导航栏遮挡
 self.navigationController.navigationBar.translucent = NO;
  • 在不考虑以上透明度的影响,tableview不被遮挡的同时还需要滑动时在不透明的导航栏中透出
  // iOS10 以上系统自动设置,以下需要手动设置
  [self.tableView setContentInset:UIEdgeInsetsMake(64, 0, 0, 0)];

Q5.动态库和静态库的区别?系统库属于哪种?

  • 静态库以.a和.framework作为文件后缀名,在使用时会被完全的copy一份到文件中,多次使用就包含多次拷贝文件,平时使用的第三方库大部分都是静态库,会使app的体积变大。
  • 动态库以.framework和.tbd(之前叫.dylib)作为文件后缀名,在使用时不会拷贝,由系统动态加载到内存中,只加载一次,多次使用可节省空间。如系统库UIKit等都是动态库。
  • 动态库制作可以包含其他静态库(.a/.framework)
  • 静态库制作可以包含其他静态库(.a/.framework)

Q6.为什么加载xib文件比纯代码耗时?

  • xib实质是xml文件,系统先要解析xml文件中的view及参数属性。

Q7.podfile.lock的作用?

  • 在使用命令【pod install】以后会生成podfile.lock文件,这个文件中保存已经安装的Pods依赖库的版本。
  • 在多人协作时,特别是在podfile文件中没有指定依赖版本号时,如果有podfile.lock文件,其他人在执行【pod install】时就会和最开始的用户保持版本一致。如果没有podfile.lock文件,可能更新出不同的版本。所以podfile.lock需要加入版本管理。
 // podfile
 platform :ios, '9.0'
def shared_pods
    pod 'FMDB' // 不指定版本,获取最新版本
end
target 'LittleNotes' do
    shared_pods
end
target 'LittleNotesWidget' do
    shared_pods
end
 //podfile.lock
 PODS:
  - FMDB (2.7.2):
    - FMDB/standard (= 2.7.2)
  - FMDB/standard (2.7.2)
DEPENDENCIES:
  - FMDB
SPEC CHECKSUMS:
  FMDB: 6198a90e7b6900cfc046e6bc0ef6ebb7be9236aa
PODFILE CHECKSUM: f5e7b7c51ca371b02aa28c158108e5f9ccdf3033
COCOAPODS: 1.3.1

Q8.如何优化应用启动时间?

  • 冷启动:启动的应用不在后台运行,系统需要重新创建一个新进程分配给应用。App启动时间是从手指点击到调用applicationWillFinishLaunching结束
  • 热启动:应用已经运行,但是被后台挂起,比如按了home键。App的启动时间是从手指点击到调用applicationWillEnterForeground。
  • 测量应用启动时间:Xcode - Edit scheme - Auguments 配置环境变量DYLD_PRINT_STATISTICS为1.
 Total pre-main time:  99.69 milliseconds (100.0%)
         dylib loading time:  39.31 milliseconds (39.4%)
        rebase/binding time:   7.57 milliseconds (7.5%)
            ObjC setup time:  10.25 milliseconds (10.2%)
           initializer time:  42.39 milliseconds (42.5%)
           slowest intializers :
             libSystem.B.dylib :  11.93 milliseconds (11.9%)
   libBacktraceRecording.dylib :   7.14 milliseconds (7.1%)
    libMainThreadChecker.dylib :  17.24 milliseconds (17.2%)

影响启动时间因素: - 动态库加载时间。一般应用会加载 100 到 400 个 dylib 文件,但大部分都是系统 dylib,它们会被预先计算和缓存起来,加载速度很快。但是另外集成的动态库应该尽量减少动态库的数量,或者将多个动态库合成一个。尽量保证将App现有的非系统级的动态库个数保证在6个以内。 - 指针修正时间。减少指针数量。就是减少App中的类、category、selector的数量。 - 初始化时间:使用+initialize代替+load方法,不要使用attribute((constructor)) 将方法显式标记为初始化器

  load -> attribute((constructor)) -> main -> initialize
  + (void)initialize{
    // 在类被第一次使用的时候调用
  }
  + (void)load{
    // 在类被运行时加载时调用
  }
  __attribute((constructor)) void beforeMain(){
  //是GCC的扩展语法(黑魔法),由它修饰过的函数,会在main函数之前调用
  }

Q9.dSYM是什么文件,有什么作用?

  • 每次编译build/Archive App时,会生成一个同名的dSYM文件,dSYM 是保存 16 进制函数地址映射信息的中转文件.
  • .dSYM中真正保存符号表数据的是DWARF文件。DWARF(DebuggingWith Arbitrary Record Formats),是ELF和Mach-O等文件格式中用来存储和处理调试信息的标准格式。
  • .dSYM文件主要用于在发生崩溃时,根据崩溃内存地址查找到具体的崩溃位置。

  • 1.首先必须保.dSYM和.app文件是对应的

 // 通过读取文件中的UUID
 dwarfdump --uuid xx.app/xx (xx代表你的项目名)
 dwarfdump --uuid xx.app.dSYM;
  • 2.崩溃错误信息
1
2
3
4
5
 // 一般崩溃信息格式
appName 0x000000010011496c appName + 379244

 // 0x000000010011496c:崩溃内存地址,十六进制
 379244:地址偏移量,十进制
  • 3.定位
1
2
3
4
5
6
7
8
9
10
11
12
 // 终端运行
 atos -arch arm64(1) -o "dSYM文件路径(2)" -l 0x00000001000B8000(3) 0x000000010011496c

 // 1.处理器指令集,真机64位处理器为arm64,32位处理器为armv7或armv7s
 // 2.将dSYM文件-右键-显示包内容,定位到DWARF目录下的app同名文件,如:/Users/zm/Desktop/ywh_dSYM/2.1.1/uclture.app.dSYM/Contents/Resources/DWARF/玩事
 // 3.初始内存地址:将十六进制崩溃内存地址转化为十进制后,减去地址偏移量,获得十进制内存初始地址,再转化成十六进制
 如:0x000000010011496c(16)= 4296100204(10)
 初始地址(10) = 4296100204 - 379244 = 4295720960
 4295720960(10) = 1000B8000(16)

 // 运行结果
 -[HonorChatViewController tableView:heightForRowAtIndexPath:] (in ) (HonorChatViewController.m:193)

Q9.关于设置frame和autolayout布局的区别

  • 手动设置frame,虽然也可以设置相对位置,不过需要大量的计算。
  • 设置autolayout不需要自己去计算
  • 直接设置frame在屏幕旋转等事件发生时需要重新适配计算位置,autolayout不需要

Q10.怎么避免NSTimer的循环引用?

  • 1.不重复timer
1
2
  _timer = [NSTimer scheduledTimerWithTimeInterval:0.1 target:self selector:@selector(todoSomething) userInfo:nil repeats:NO];
  // timer在执行一次selector后自动调用invalidate方法,不会造成循环应用
  • 2.重复执行的timer
1
2
 _timer = [NSTimer scheduledTimerWithTimeInterval:0.1 target:self selector:@selector(todoSomething) userInfo:nil repeats:YES];
 // 重复的timer必须手动执行invalidate方法,且不能再dealloc中执行,因为timer强引用self,导致self不能释放,不会触发dealloc
    1. invalidate方法的作用
1
2
3
4
5
6
  Stops the timer from ever firing again and requests its removal from its run loop.
This method is the only way to remove a timer from an NSRunLoop object. The NSRunLoop object removes its strong reference to the timer, either just before the invalidate method returns or at some later point.
If it was configured with target and user info objects, the receiver removes its strong references to those objects as well.
停止计时器再次触发,并请求将其从运行循环中删除。
该方法是从NSRunLoop对象中删除计时器的惟一方法。NSRunLoop对象删除了它对计时器的强引用,或者是在无效的方法返回之前,或者在稍后的某个时间点。
如果它配置了目标和用户信息对象,接收者也会删除对这些对象的强引用。

Q11.在block中使用_xxx的方式使用属性会不会循环引用?

  • 会产生循环引用
  • _name和self.name的区别是self.name直接调用属性的get方法,
  • _name是调用类的实例变量。都会传入self被block强引用。
1
2
3
4
self.block = ^(id target) {
        _name = @"weekend";
    };
    self.block(self);

Q12.设计一个方法查询指定view上所有相同类型的子控件

  • 1.需要想到view的子view的子view…中也要查找
  • 2.自定义继承的控件也需要查找
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
// 1.使用递归查找子view
// 2.自定义控件使用isKindOfClass
- (NSInteger)searchSubviewsCountByType:(NSString *)type atView:(UIView *)view{
   __block NSInteger count = 0;
    NSArray <UIView*> *subviews = view.subviews;
    [subviews enumerateObjectsUsingBlock:^(UIView * _Nonnull obj, NSUInteger idx, BOOL * _Nonnull stop) {
        NSInteger subCount = 0;
        if(obj.subviews.count != 0){
            subCount = subCount + [self searchSubviewsCountByType:type atView:obj];
        }else{
            Class targetClass = NSClassFromString(type);
            if([obj isKindOfClass:targetClass]){
                subCount++;
            }
        }
        count = count + subCount;
    }];
    return count;
}

// isKindOfClass:返回一个布尔值,该值表示接收者是给定类的实例还是继承该类的任何类的实例。
Returns a Boolean value that indicates whether the receiver is an instance of given class or an instance of any class that inherits from that class.
// isMemberOfClass:返回一个布尔值,该值表示接收者是否为给定类的实例。
Returns a Boolean value that indicates whether the receiver is an instance of a given class.

Q13.在主线程中新建一个串行队列,同步执行任务,任务在哪个线程中执行?为什么?

  • 任务执行在主线程
  • 串行队列:队列中的任务按照顺序执行
  • 并行队列:队列中的任务同时执行
  • 同步:阻塞当前线程,直到任务执行完毕
  • 异步:不阻塞当前线程
1
2
3
4
5
6
7
8
9
10
11
// 同步串行:阻塞当前主线程,并顺序执行。不同的任务队列不会发生死锁。
 dispatch_sync(dispatch_queue_create("serial", DISPATCH_QUEUE_SERIAL), ^{
        NSLog(@"currentThread:%@",[NSThread currentThread]);
    });
//log:
currentThread:<NSThread: 0x604000076c40>{number = 1, name = main}

// 死锁:当前队列等待block中的任务执行完毕,block中任务阻塞主线程等待主线程队列中的任务执行完毕。
dispatch_sync(dispatch_get_main_queue(), ^{
        NSLog(@"currentThread:%@",[NSThread currentThread]);
    });

Q14.在dealloc中写以下方法会输出什么?

1
2
3
4
- (void)dealloc{
    __weak typeof(self) weakSelf = self;
    NSLog(@"weakSelf:%@",weakSelf);
}
  • 运行崩溃:objc[1653]: Cannot form weak reference to instance (0x7fc3a8c0c920) of class TestViewController. It is possible that this object was over-released, or is in the process of deallocation.
  • dealloc:释放被接收方占用的内存。 接收到接收方的后续消息可能会产生一个错误,指示消息被发送到一个回收对象(前提是该回收的内存还没有被重用)。
  • 当前self在回收过程中,不允许弱引用

Q15.怎么在当前页面关闭的时候取消还没有下载完成的任务?

  • 1.NSOperation
 // 1.添加任务到队列
  self.operationQueue = [NSOperationQueue new];
    self.operationQueue.maxConcurrentOperationCount = 1;
    for(int i = 0;i<10;i++){
        [self.operationQueue addOperationWithBlock:^{
            sleep(1);
            NSLog(@"i == %d",i);
        }];
    }
  // 2. 挂起队列,不能暂停正在执行的任务
   [self.operationQueue setSuspended:YES];
  // 3. 取消挂起
  [self.operationQueue setSuspended:No];
  // 4.取消全部任务
    [self.operationQueue cancelAllOperations];
   // 5.取消单个任务
    NSBlockOperation *blockOp = [NSBlockOperation blockOperationWithBlock:^{
        // do something
    }];
    [self.operationQueue addOperation:blockOp];
    [blockOp cancel];
  • 2.GCD
 // 1.添加任务到队列
  dispatch_block_t gcdBlcok = dispatch_block_create(0, ^{
        NSLog(@"to do something");
    });
    dispatch_async(self.queue, gcdBlcok);
  // 2.取消任务
  dispatch_block_cancel(gcdBlcok);
  OR dispatch_cancel(gcdBlcok);
  // 3.挂起队列
  dispatch_suspend(self.queue);
  // 4.取消挂起
  dispatch_resume(self.queue);
  • 3.页面关闭时,取消队列中还没有开始的任务。如果使用GCD需要将任务单独生成一个dispatch_block_t对象,如果是NSOperation,直接调用 cancelAllOperations。

Q16 objectForKey和valueForKey的区别

首先, objectForKey:是一个NSDictionary方法,而valueForKey:是任何KVC投诉类所需的KVC协议方法 - 包括NSDictionary。

文档提示NSDictionary实现其valueForKey:方法使用其objectForKey:实现。 换句话说- [NSDictionary valueForKey:]调用[NSDictionary objectForKey:]

1
2
3
/* Return the result of sending -objectForKey: to the receiver.
*/
- (nullable ObjectType)valueForKey:(NSString *)key;
  • KVC协议仅适用于NSString *键,因此 valueForKey:只接受NSString * (或子类)作为键,使用别的类型会崩溃;而objectForKey:接受任何可复制(符合NSCopying协议)对象作为密钥。

  • 如果valueForKey的key的第一个字符是@,@会被去掉

  • valueForKey找不到value也不会崩溃
1
2
3
4
5
6
7
8
9
10
11
12
13
NSDictionary *dict = @{@"@theKey":@"@theValue"[NSNumber numberWithInt:1]:@[],@"theKey":@"theValue"};

NSString *value1 = [dict objectForKey:@"@theKey”];
//value1=@theValue

NSString *value2 = [dict valueForKey:@"@theKey”];
// value2=nil,虽然@被去掉了却无法取到theValue

NSArray *value3 = [dict objectForKey:[NSNumber numberWithInt:1]];
// value3 = @[]

NSArray *value4 =[dict valueForKey:@"1”];
// value4 = nil 如果这里的key是[NSNumber numberWithInt:1],会报警告并且崩溃
